FLORA Channel Type meters are first of a kindElectronic Energy-sub meter that can fit on 35mm din rail channel along with Isolators/MCBs in a metal/plastic MCB enclosure or MCB distribution box.

These meters are compact and easy to maintain as space occupied by these meters are equivalent to double pole MCBs.


Having Class-1 accuracy, these meters comply to all standards defined under IS: 13779.

Keeping in mind the features available in conventional meters, Channel type meters also come with terminal seal protection provision. Seal not more than 0.8mm diameter can be used to seal the terminals from getting tampered.

CHANNEL TYPE ENERGY METERS- SUB METER

Competent Electricals (India) has been granted design patent for our innovative design of Channel Type Energy Meters. The Meter is build in a size equivalent to a double pole MCB and can also fit on a 35mm Din mounting rail.

The product was built, keeping in mind the need for a new asthetic design, over a conventional design prevailing for the past decades.

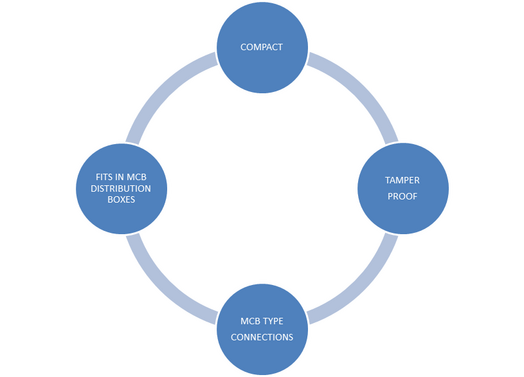

KEY FEATURES
